Self-clinching nut AC are floating nuts but without self-locking functions. which easy and quick to install and has high strength, it is shock-resistant and wear-resistant, comes in a variety of specifications and materials, making it particularly suitable for connecting thin plates.

When purchasing, choose the appropriate option based on the intended use.

Head type: Floating + Non self-locking

Material: Stainless steel

Metric threads:  M3 M4 M5 M6

Unified threads:  #4-40   #6-32   #8-32   #10-32   1/4-20   1/4-28F

Custom sizes can be customized to meet customer requirements.

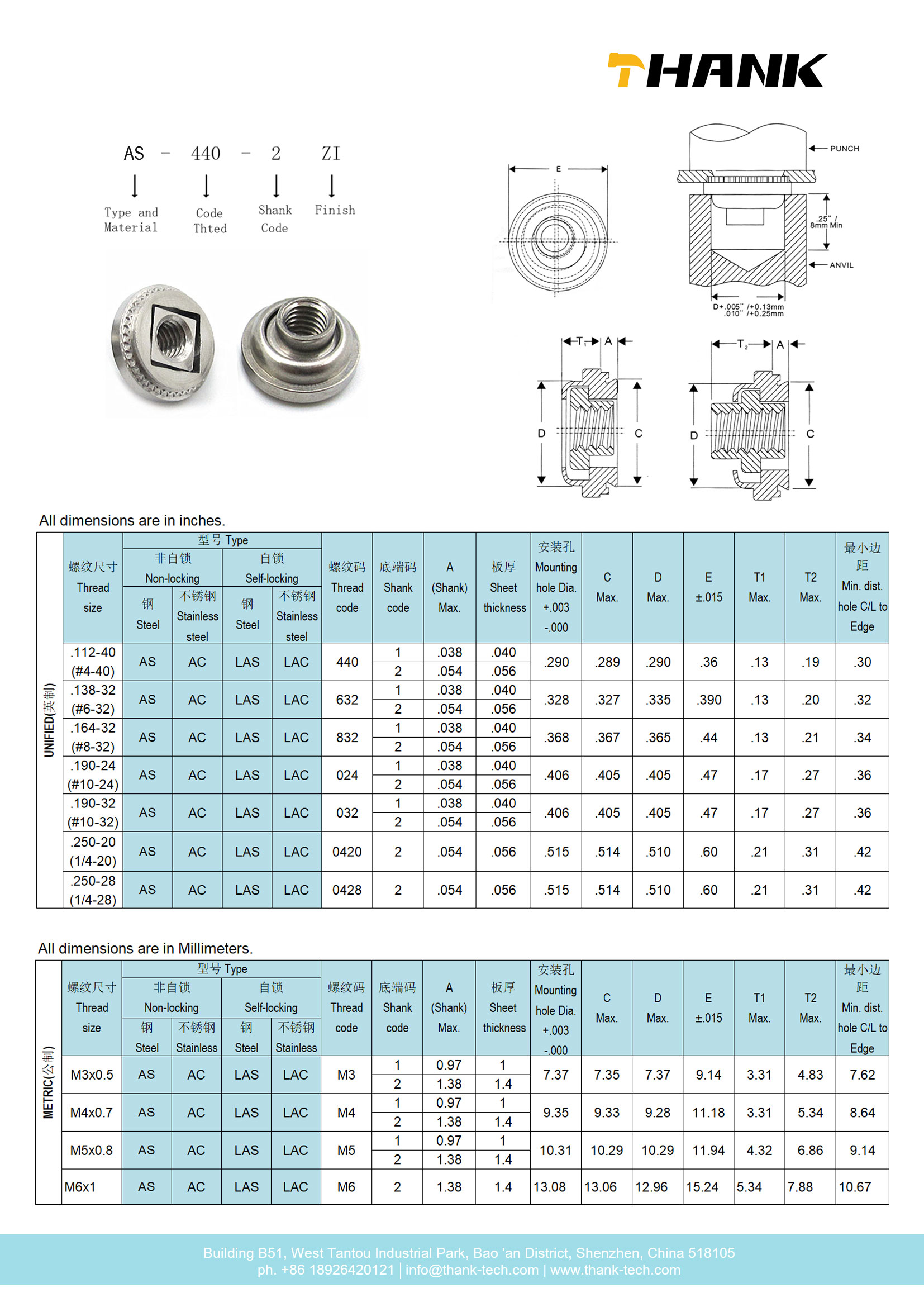

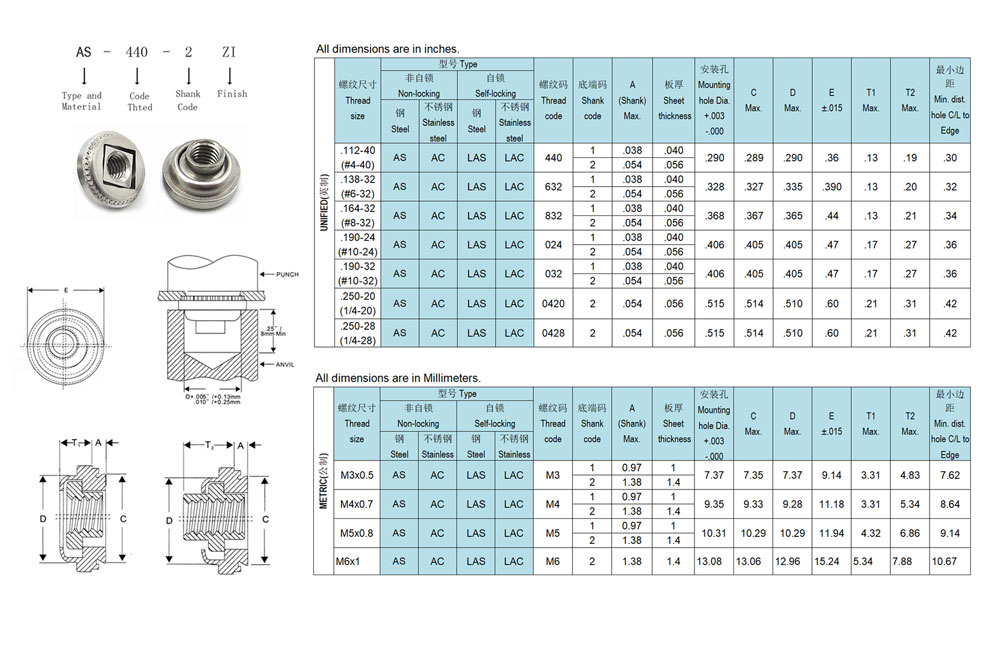

For measurements in detail:
