Zinc hex standoff screws are one of the commonly used fasteners in the electronics industry.  They have strong conductivity, they are resistant to oxidation and corrosion, meanwhile these standoff have a unique structure and available in various materials and size, so their applications are very wide-ranging.

1, Structure: this standoff spacer with one end an internal hexagonal thread, and the other end an external thread, it belongs to male-female thread double head hex standoff.

2, Material: Carbon steel

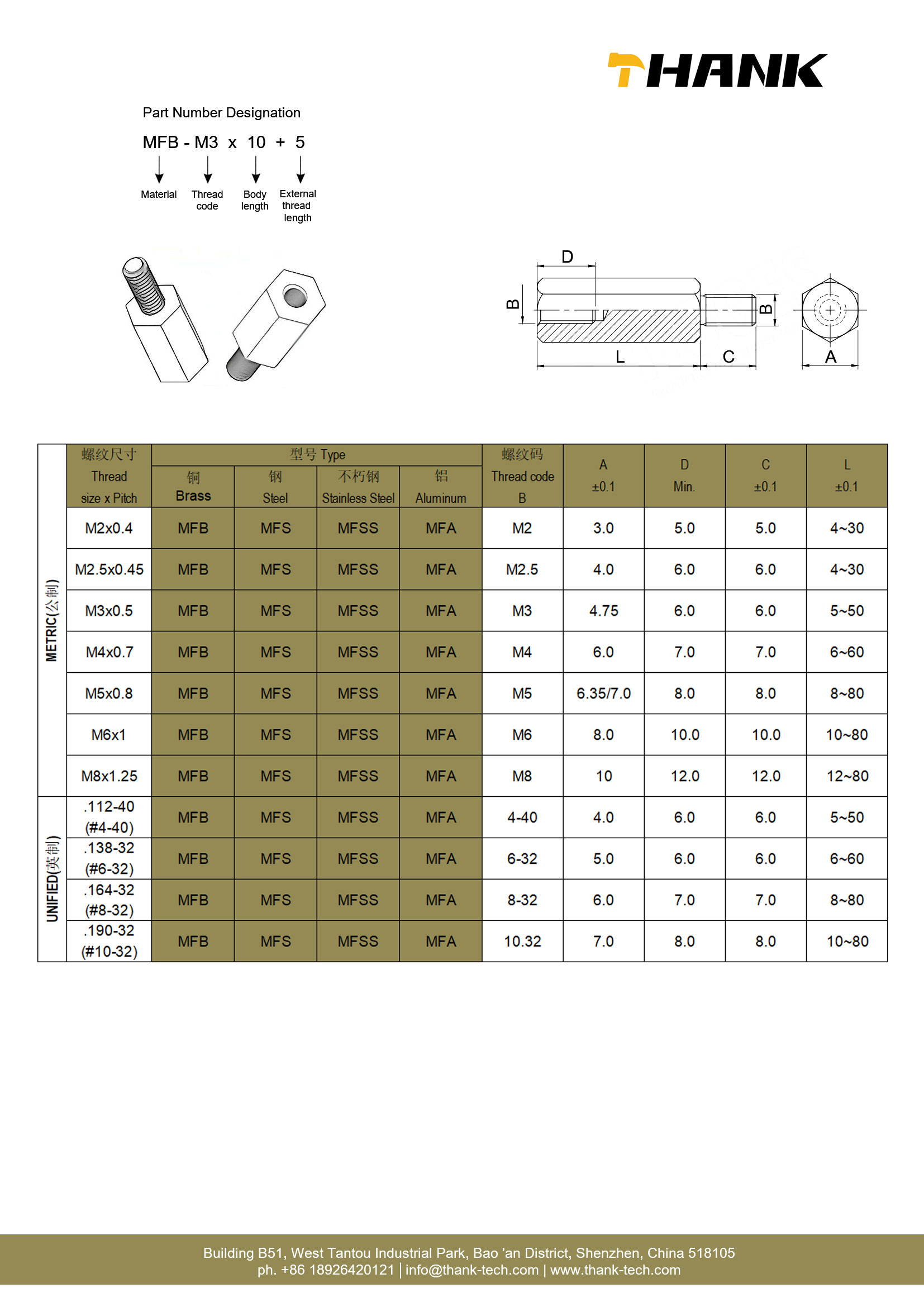

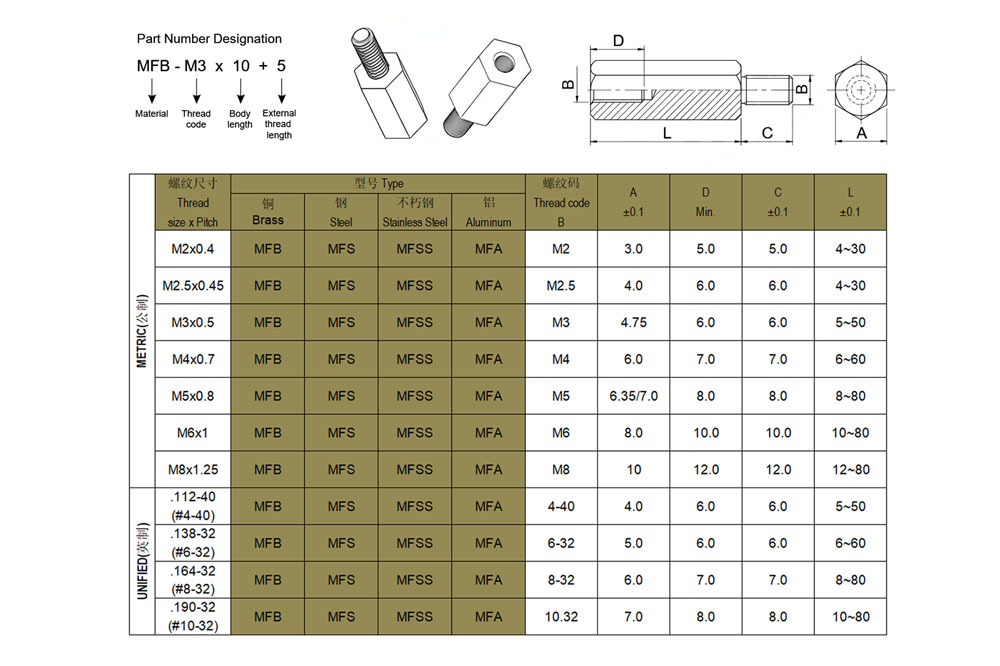

3, Size Description: Main dimensions include thread size, hexagonal length, and external thread length.

For example, M4x10+6 indicates that both the internal and external threads are M4, the hexagonal length is 10mm, the external thread length is 6mm.

Available Metric threads: M2.5 M3 M4 M5 M6 M8

Available Unified threads: #4-40 #6-32 #8-32 #10-32

Length: 3mm-80mm

(If the above specifications and dimensions do not meet your requirements, we can provide customized services.)

4, Manufacturing Method: The production process generally involves cold heading, tapping the internal thread with a tapping machine, and rolling the external thread with a thread rolling machine.

5, Application Areas: The hex standoff screw primarily used in computer cases, circuit boards, and other industries. After one end is screwed into the object to be fastened,the hexagonal column remains exposed, it can fixed or isolated other objects.

6, Surface Treatment: Zinc plating. (Other surface treatments such as nickel plating, tin plating, gold plating, silver plating are also available depending on application requirements)

Customers can choose the most suitable material and specifications according to their actual needs.
