PF50 spring loaded captive panel screws are mainly suitable for the installation of sheet metal, thin plates, chassis, cabinets, and communication equipment. They are also widely used in the installation of stainless steel plates, metal plates, galvanized steel plates, etc. They are characterized by unique structure, convenient installation, diverse materials, and wide application.

Available in both metric and imperial units, its most distinctive feature is that it is made of stainless steel.

Metric: M3 M3.5 M4 M5 M6

Inches: #4-40 #6-32 #8-32 #10-32 1/4-20

Customization is also possible to meet customer requirements.

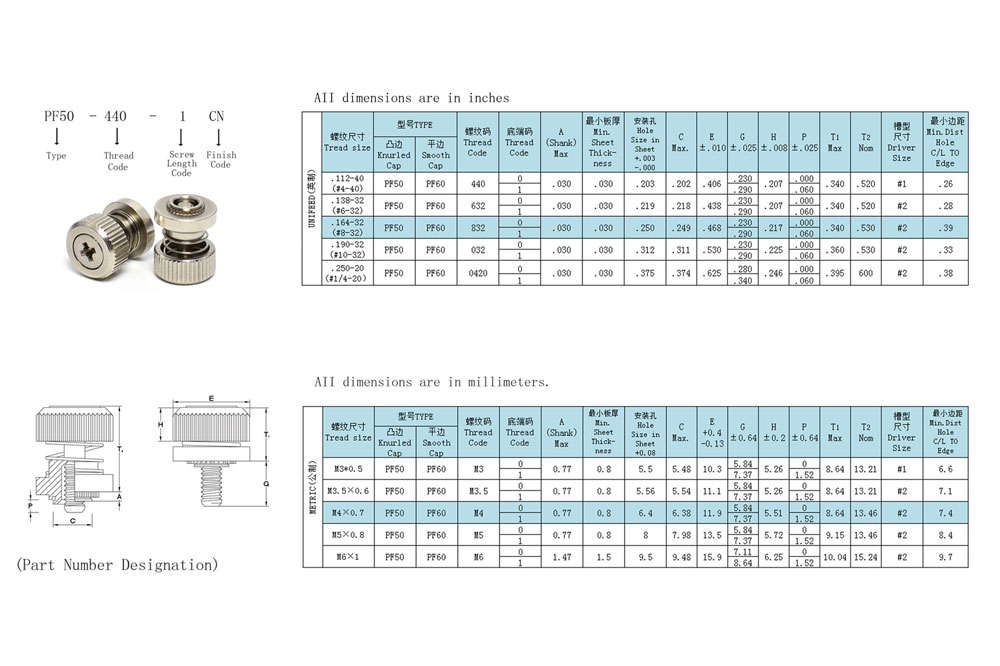

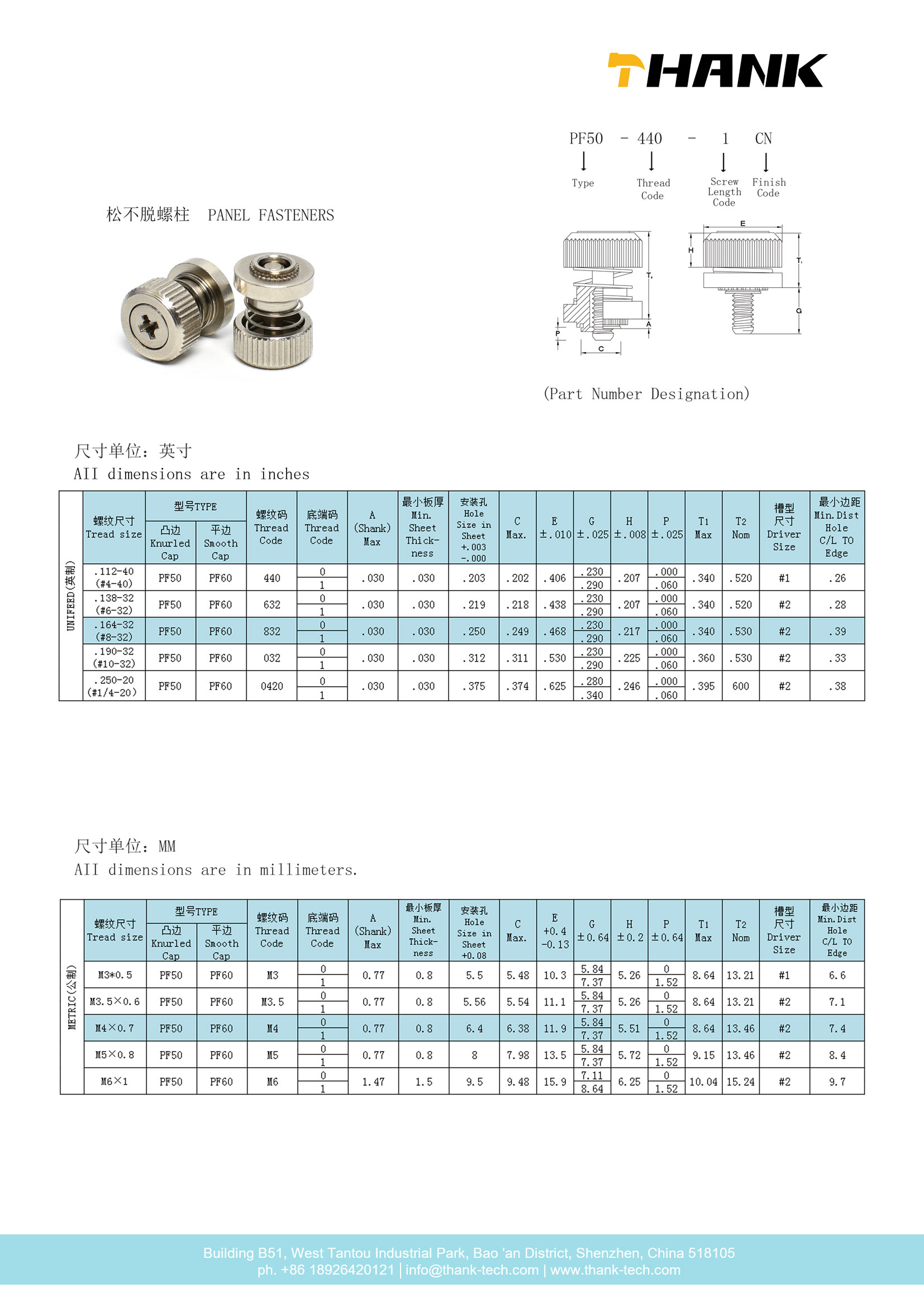

For measurements in detail:
