PFHV spring loaded captive panel screws are suitable for installation on stainless steel sheets, metal sheets, galvanized steel sheets, in engineering installations, metal curtain walls, metal partitions, etc., as well as for installation in combination with general angle steel, channel steel, iron plates and other metal materials.

Available in both metric and imperial units, Nickel-plated is the most common. A variety of sizes are available.

Metric: M3 M4

Inches: #4-40 #6-32

Customization is also possible to meet customer requirements.

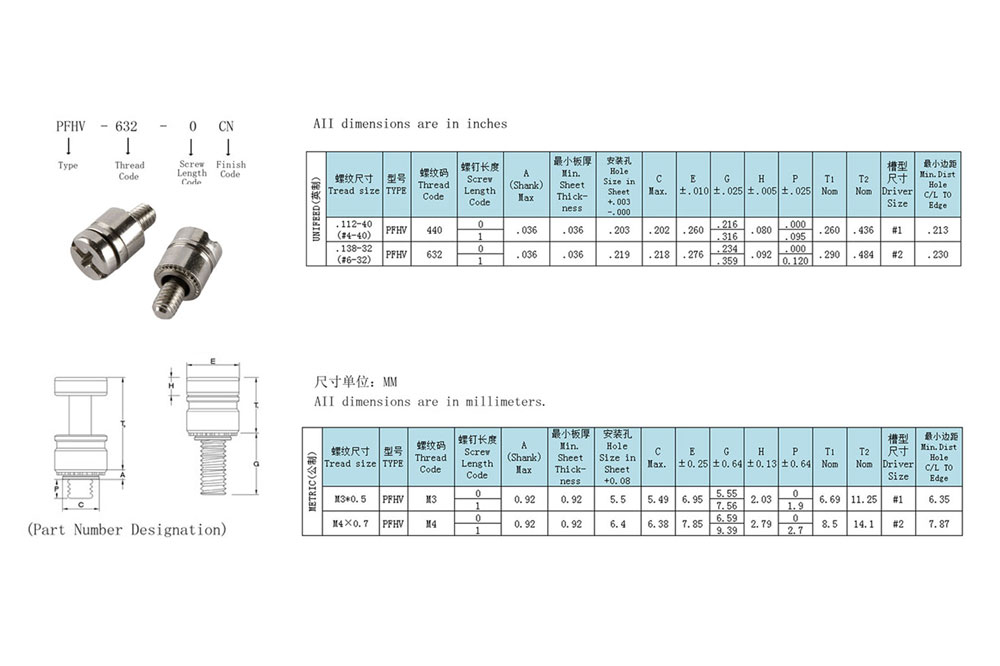

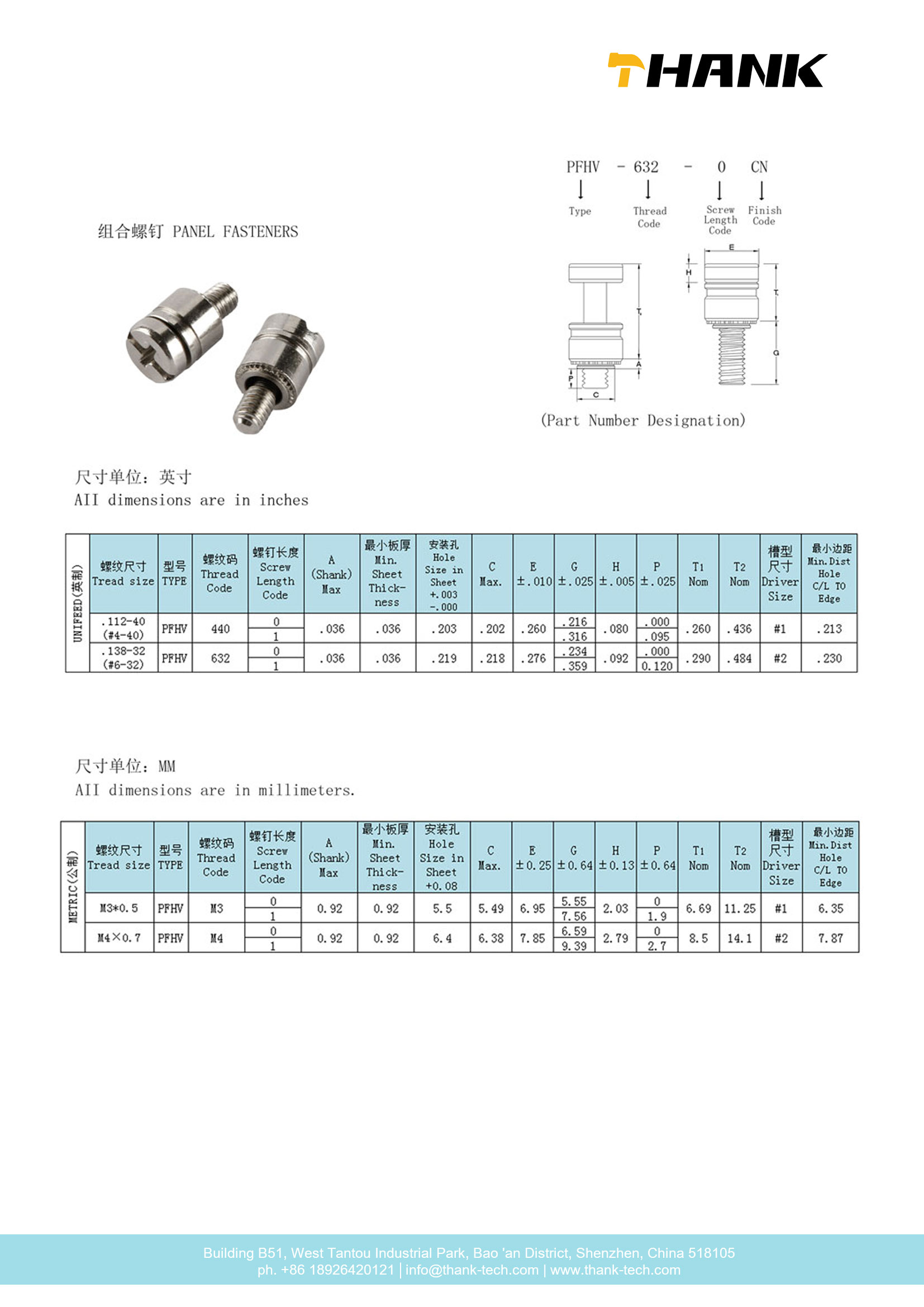

For measurements in detail:
