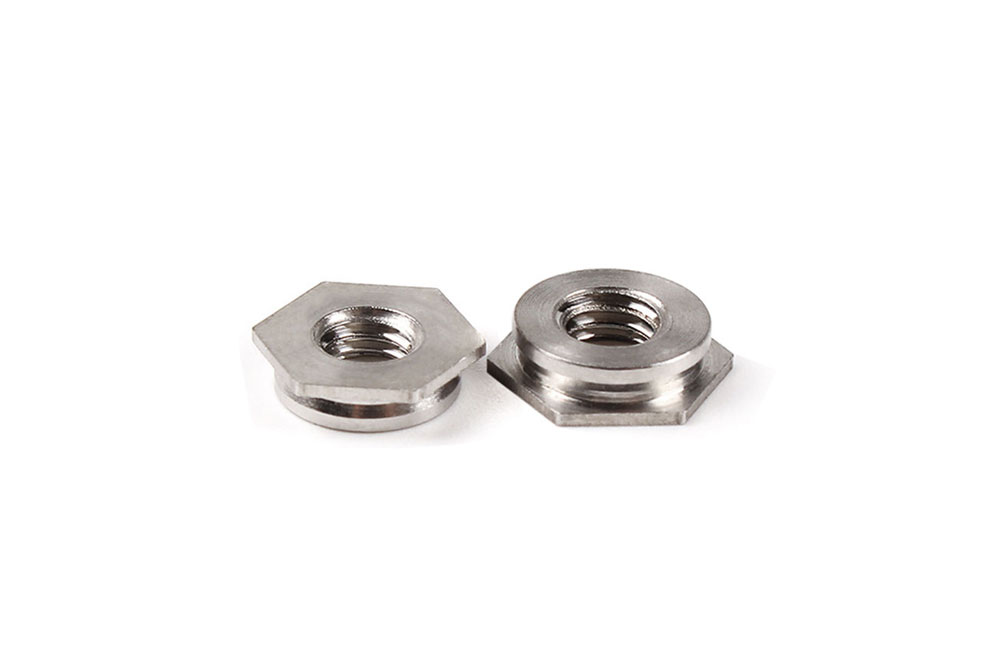

FS self clinching nut is very thin,  which easy and quick to install and has high strength, it is shock-resistant and wear-resistant, comes in a variety of specifications and materials, All these characteristics making the press-fit self clinching nut particularly suitable for connecting thin plates. When purchasing, choose the appropriate option based on the intended use.

Head type: Hexagon

Material: Stainless Steel

Metric threads: M2 M2.5 M3 M4 M5 M6

Unified threads: #2-56  #4-40  #6-32  #8-32  #10-32  1/4-20

Custom sizes can be customized to meet customer requirements.

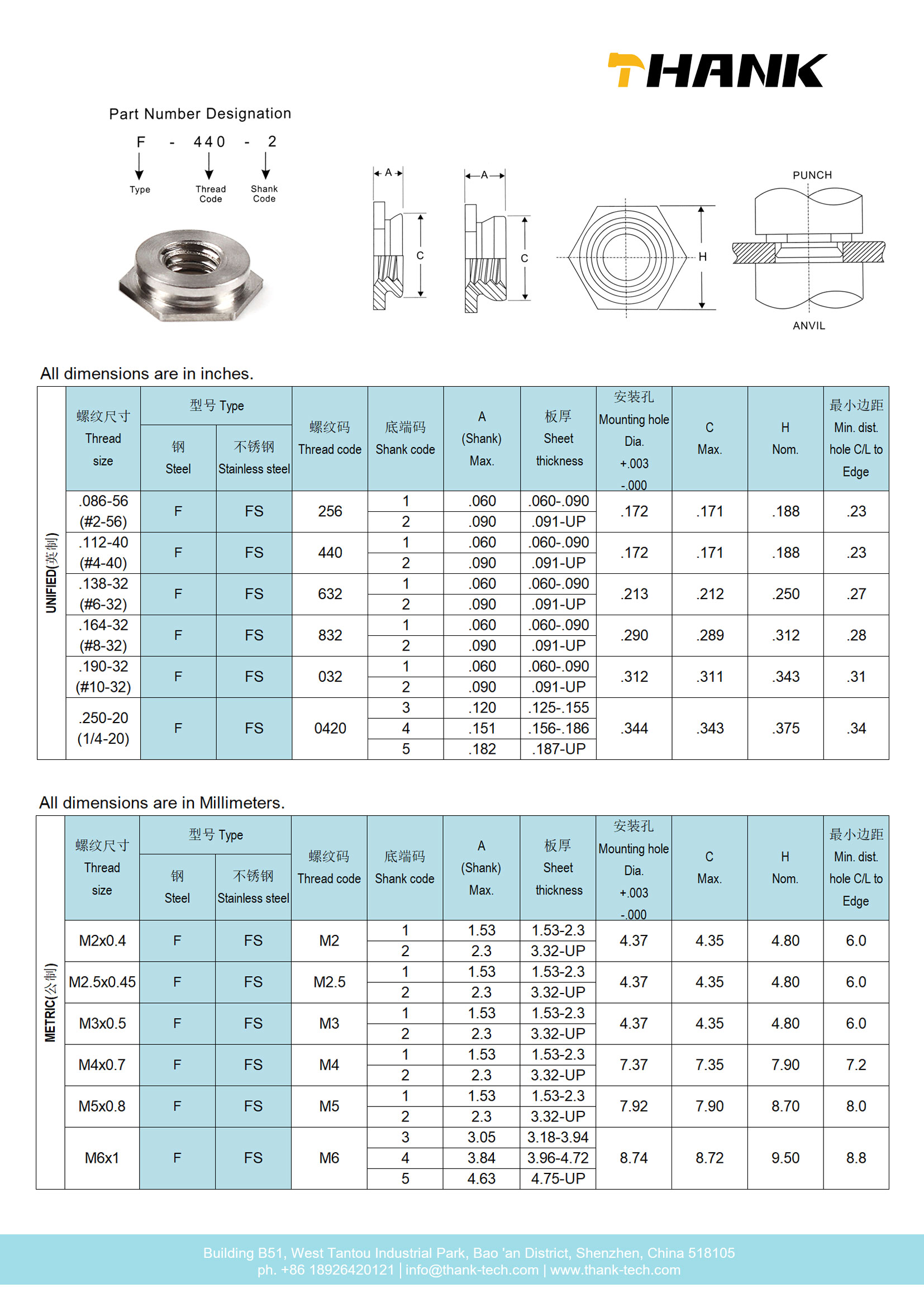

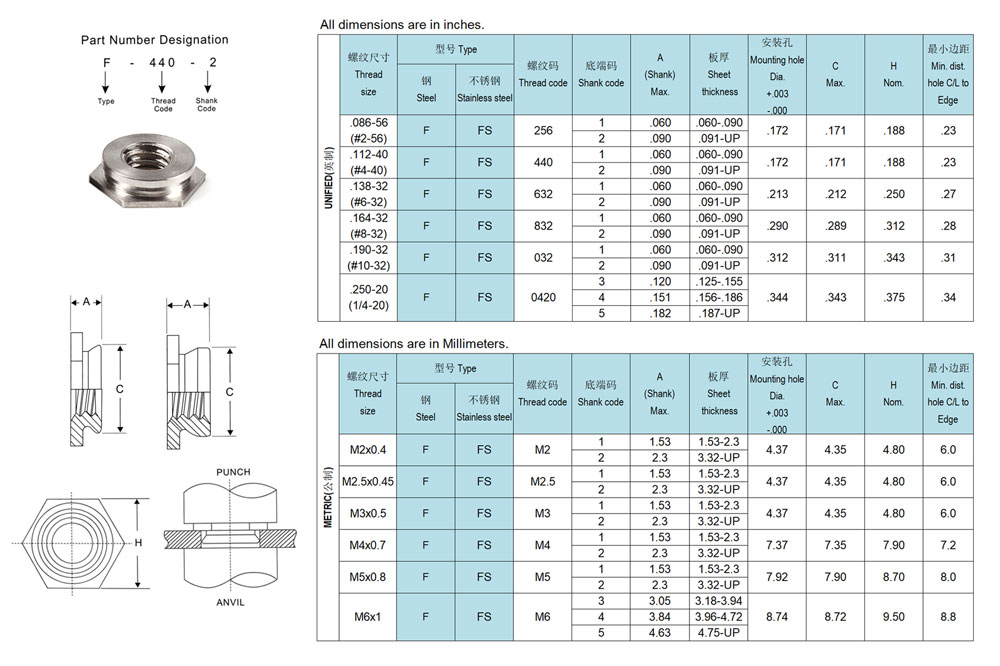

For measurements in detail:
